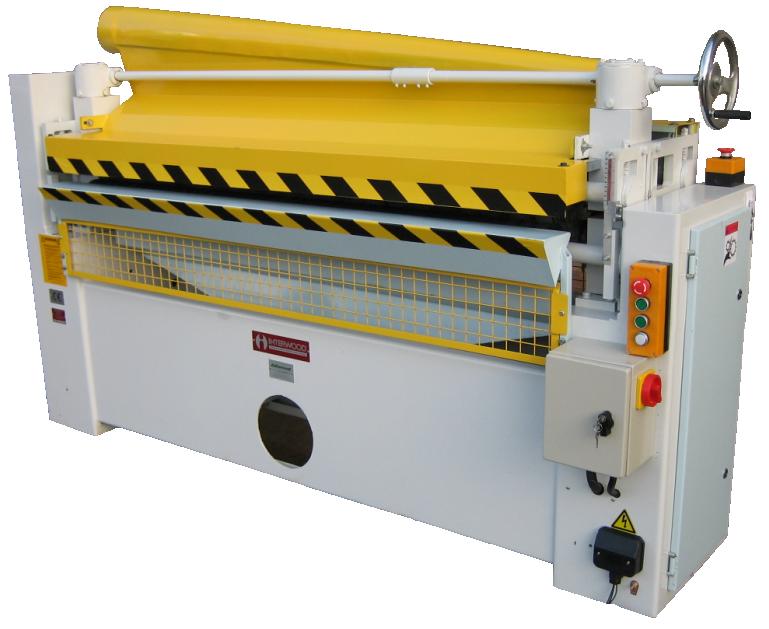

Machine for brushing and cleaning of plane surfaces and edges.

This machine is designed for the double-sided brushing of plane surfaces and is usually built into a press plant –

(Glueing machine, layout station, Press etc).

With 2 additional units the edges can also be cleaned.

Rubberised transport rollers ensure that the workpiece is inserted into the machine correctly. Minimum length of workpiece is 400mm.

Working width:   1300mm
Driving motor brushing unit:   1.5kW
Brushing rollers:   170mm Ø, ca. 600rpm
Feeding motor:   0.75kW
Feed Speed:   16mt/min
Edge brushes left and right:   0.12kW
Upper and lower exhauster:   1.1kW (1800 m³/h)
Connected load:   3 x 380V, 50 Hz

Price Exc. VAT:   £5,850.00             Spare set of brushes:   £700.00

Working width:   1600mm
Driving motor brushing unit:   1.5kW
Brushing rollers:   170mm Ø, ca. 600 rpm
Feeding motor:   0.75kW
Feed Speed:   16mt/min
Edge brushes left and right:   0.12kW
Upper and lower exhauster:   1.1kW (1800 m³/h)
Connected load:   3 x 380V, 50 Hz

Price Exc. VAT: Price Ex Works – Please Contact Hybond for Pricing – Spare set of brushes: Please Contact Hybond for Pricing

All machines are sold subject to our standard terms and conditions which are available upon request
