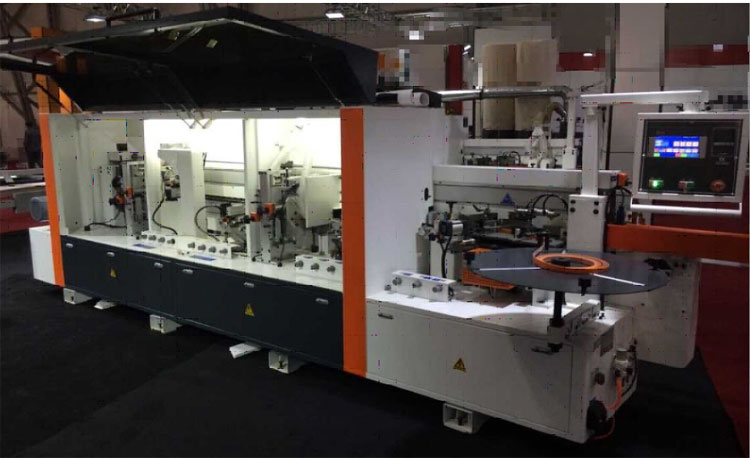

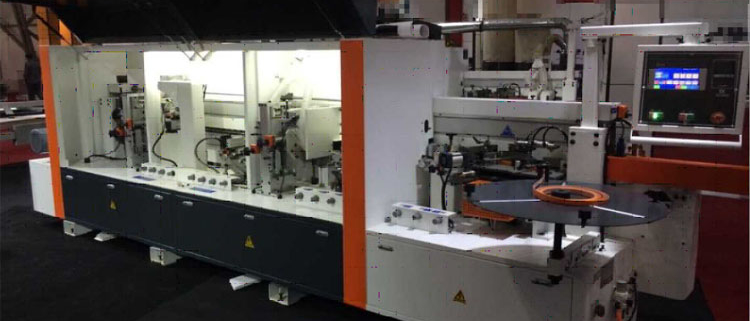

Single Sided Automatic Corner Rounding Edge Bander

Machine Structure:

Machine base manufactured from heavy duty fabricated steel to guarantee stability and accuracy for operating units.

Body Frame is laser cut for strength and accuracy.

Panel Feeding System:

  • Main control touch screen HMI ( Human machine interface) user friendly
  • The guide ways for the track pads consist of one steel bar ground and hardened and one precision machined flat bar.  This maintains accuracy of panel feeding.
  • Track Mechanism consists of a chain drive with sprockets at either end of the machine.
  • Main track is fitted with rubber track pads.
  • Top pressure consists of heavy-duty beam being raised and lowered by two steel columns.  These are fitted with rubber wheels.
  • Top Beam fitted with power rise and fall with digital read out
  • When the top pressure is adjusted it automatically raises the trimming stations.

Pre-Milling unit.

  • Counter rotating milling units allowing for clean edge prior to edge banding.
  • Two diamond covered cutter blocks that are durable for most substrates.
  • Strengthen area to eliminate vibration.
  • Adjustment made simple with mechanical digital; read out
  • Motor power 2 x.75KW

Glue Pot, Edge Feeding and Pressure Zone

  • The glue pot consists of a quick melting system and a heated application roller.
  • Control via a digital thermostat.
  • Edge feeding for materials 0.4 to 3mm
  • Guillotine for edging up to 3mm.
  • Pressure roller system consisting of 4 rollers.
  • First roller driven, rollers 2, 3, 4 are free running with independent pressure adjustment.
  • Machine if fitted with an encoder for accurate track speeds

Snipping Unit

  • Two independent high frequency motors are fitted to trim the front and rear edges.
  • Trimmers are positioned using a precision linear slide way system enabling accurate trimming of panel.
  • Simple manual adjustment for accurate trimming.
  • Supplied complete with saw blade.
  • Motor4 power  2 x 0.37 KW
  • 12000 RPM

Fine Trimming Unit

  • Two independent high frequency motors are fitted to trim top and bottom of panel.
  • Manual tilt movement between 0 and 10° for angled trimming of edging.
  • Independent tracing wheels for accurate machining of edging.
  • Fully adjustable tracing wheels for accurate machining of edging.
  • Automatic thickness adjustment via link to main beam.
  • Supplied complete with straight or radius cutters.
  • Motor power  2 x 0.75KW
  • RPM 18000

Corner Rounding

  • Double stage rounding unit
  • Linier shafts for speed and accuracy
  • Simple adjustment
  • Corner rounding on panel thickness up to 60mm
  • Motor power

Edge Scraping

  • Unit complete with two cutting knives.
  • Mechanical digital readouts for fine adjustment.
  • Mounted on a heavy-duty framework to insure accuracy.
  • Chrome plated positioning pads for accurate adjustment of cutting knives.
  • Knives are 3mm radius for PVC and ABS edges.

Brushing Unit

  • Fitted with two independent motors.
  • Two cloth polishing mops.
  • Manual adjustment for raising and lowering the unit.

Technical Specification:

Panel Thickness                           10-60mm

Panel Width Min                           60mm

Panel Length Min                         175mm (pvc)

Edge Width                                 15-65mm

Edge Thickness                            0.4 to 3mm

Feed Speed                                0 – 23 m/min (20 m/min for corner rounding)

Maximum working height for corner rounding 50mm

Frequency Converter                              200Hz

Installed Power                            13.05

Pneumatic Power                         0.7MPa

Net weight                                  1450kg

Overall dimensions                       5900mm L  x 760mm W x  1600mm H

Price Ex Works – Please Contact Hybond for Pricing

All machines are sold subject to our standard terms and conditions which are available upon request
